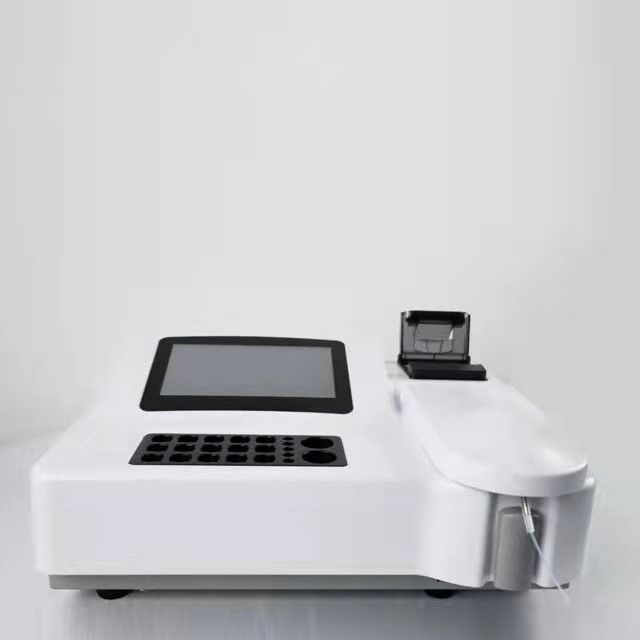

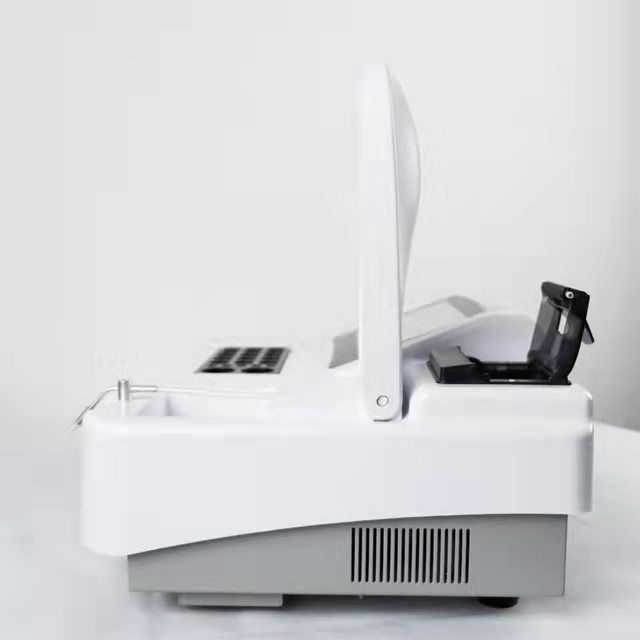

ES-105 Semi Automatic Biochemistry Analyzer

Semi-Automated Chemistry Analyzer

Specifications

Test Method: 1 point end, 2 point end(Sample blank), kinetics, fixed-time, Coagulation(Optional)

Optics: 7 standard filters: 340nm, 405nm, 505nm, 546nm, 578nm, 630nm, 2 more for optional

Temperature: 25, 30, 37℃ and Room temperature, By means of Peltier elements

Flow cell capacity&optical path: 32μL,10nm

Resolution: 0.0001Abs

Photometric range: 0.0000-4.0000Abs

CPU:ARM Cortex-A8, 720M Hz

Memory: DDR2 SDRAM: 1Gbit

Flash: 256MB Over 300programs, 200000results can be stored

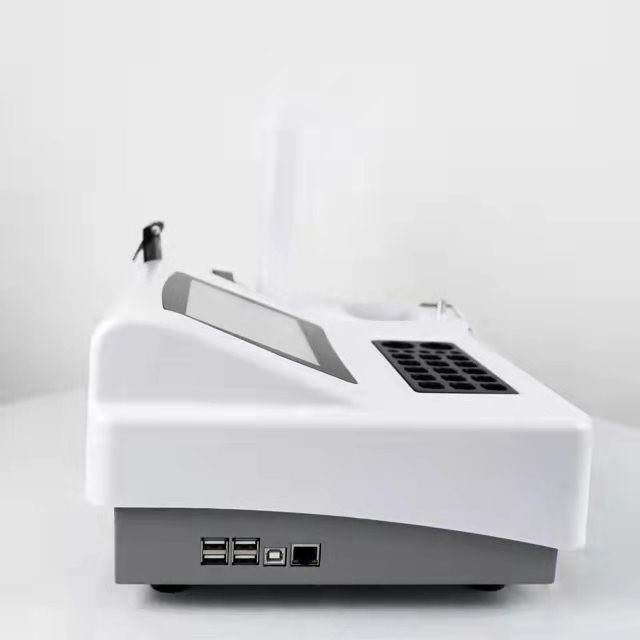

Interface: 4USB Hosts, 1USB Slave, 1 Ethernet port

Operational environment: Temperature: 10℃~30℃，Humidity: 30%~80%

Power requirement: Wide power supply AC 100-240V, 50/60Hz

Dimension: 400*300*160(L*W*H)
